Soccer

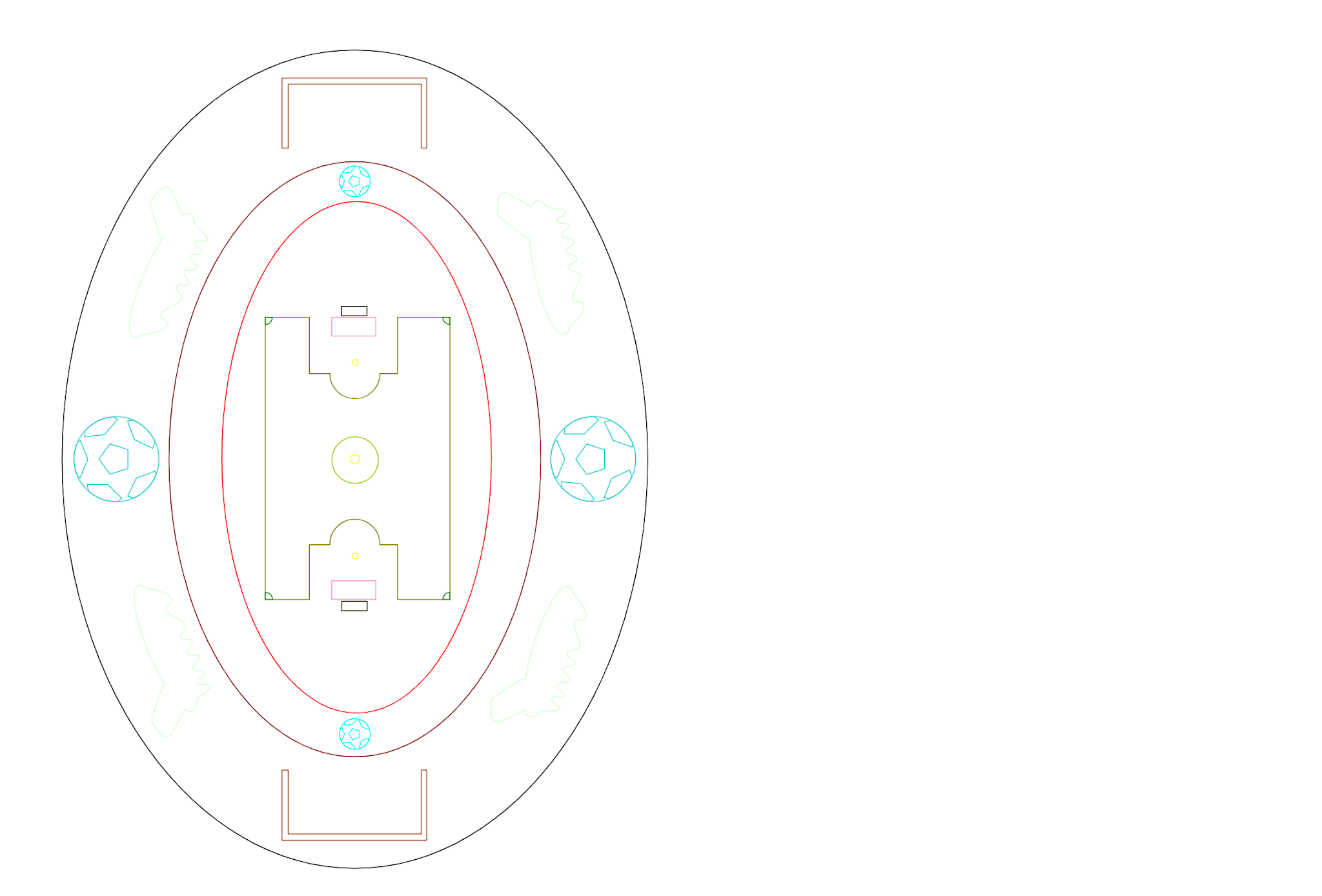

Here is the the colored outline of the original design plus photos of the final cuts. The laser was operating smoothly and the run took about 5 minutes. Again as for the hockey stencil, I found no charring, cracking or splintering on the edge or back sides of the plexiglass. This will make for a smoother trace with the pens.

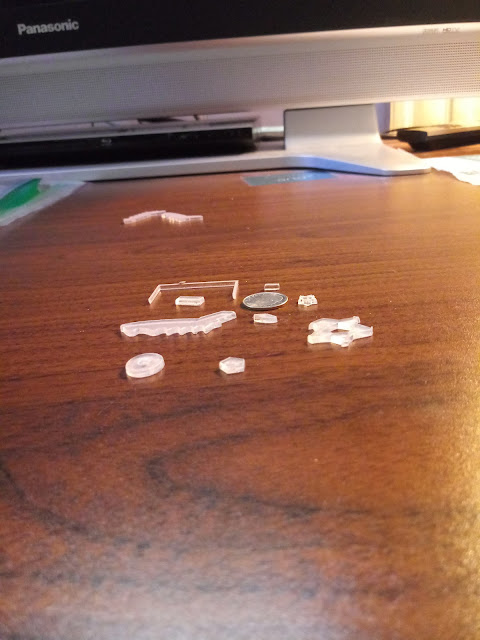

It does not really affect the usage, but you'll notice some areas in the bottom photos where blobs of melted then hardened plexiglass are scattered around. In one case a polygon from the one of the larger soccer balls has its outline engraved in. The best explanation I can give is that the laser was set at power levels higher then I needed, and smaller hot pieces (or the beam itself) reached the larger shapes that had previously fallen into the catch tray.























Soccer field with balls, cleats, goals and markings
